About Eco Slide

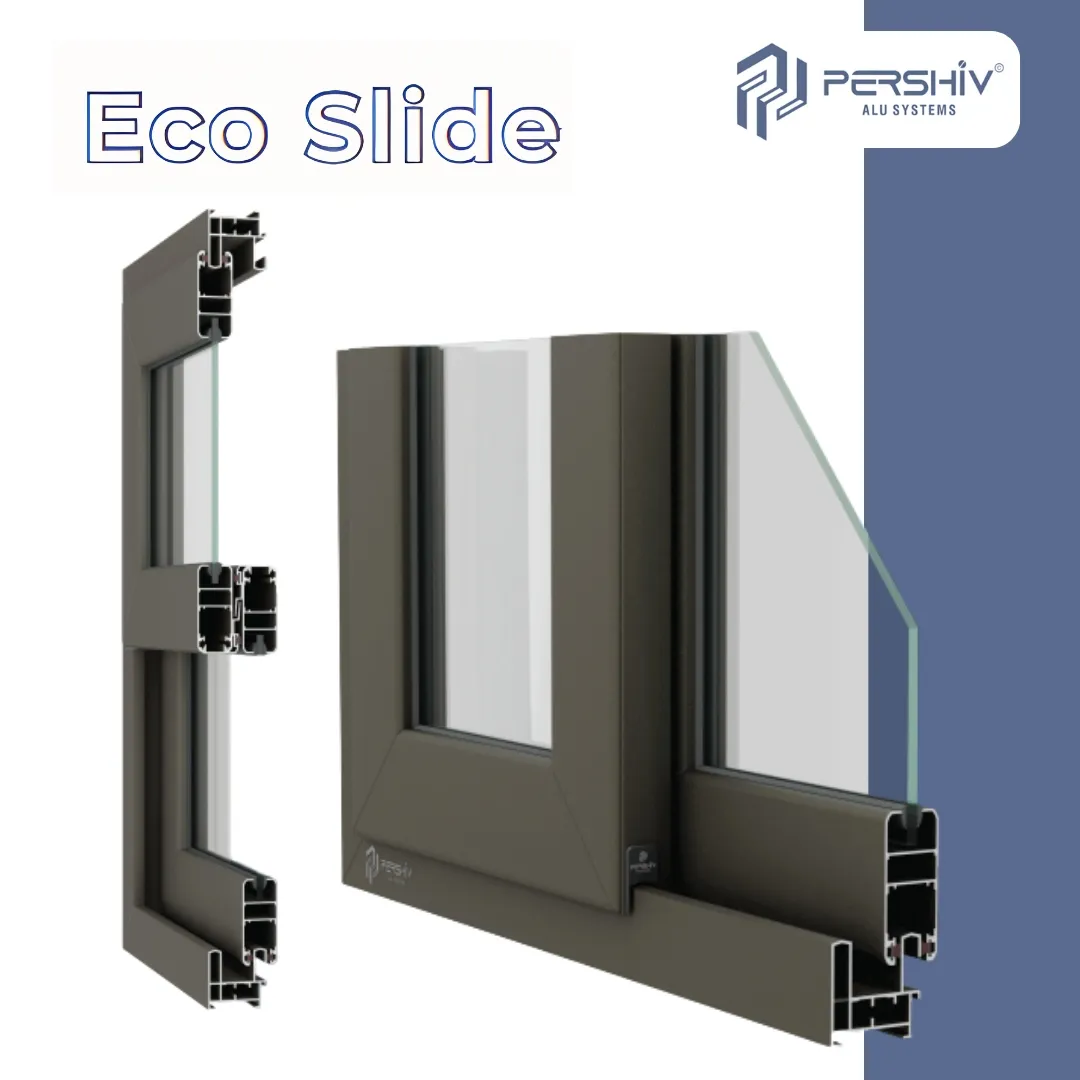

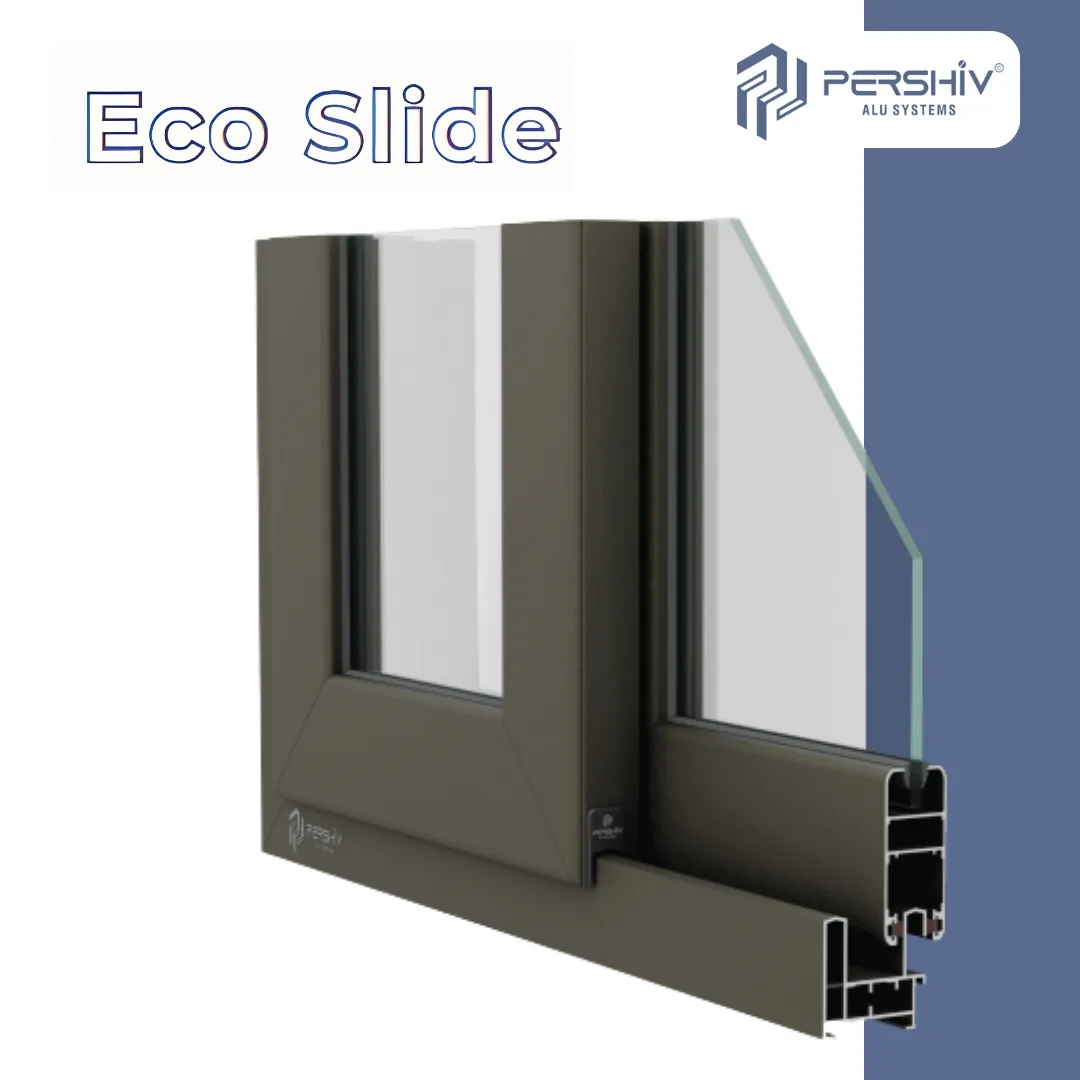

Eco Slide Aluminium Window System is designed to provide a perfect balance of performance, durability, and modern aesthetics. Built with high-quality T-6 6063 aluminium alloy, the system ensures superior strength and long-term reliability for residential and commercial spaces.

Available in both 2-track and 3-track configurations, Eco Slide supports shutter sizes up to 2100 mm height and 1200 mm width, making it suitable for different architectural requirements. The system supports 4 mm to 6 mm glass thickness and offers smooth operation through high-performance rollers with a maximum capacity of 85 kg.

Equipped with Single Point and Multi Point locking systems, Eco Slide enhances security while maintaining convenience. The integrated mosquito mesh option further improves comfort. Designed with sound insulation, wind load resistance, water tightness, and impact resistance, Eco Slide delivers dependable performance with multiple colour choices and a 10-year warranty.

Technical Specifications

2 Track Width : 40 mm

3 Track Width : 80 mm

Top Bottom Track Height : 45 mm

Vertical Track Height : 45 mm

Interlock Site Line : 65 mm

Glass Thickness : 4 mm to 6 mm

Max Shutter Height : 2100 mm

Max Shutter Width : 1200 mm

Aluminium Alloy : T-6 - 6063

Lock Type :  Single Point & Multi Point

Mosquito Net : Yes

Max Roller Capacity :  85 kg
